Overview

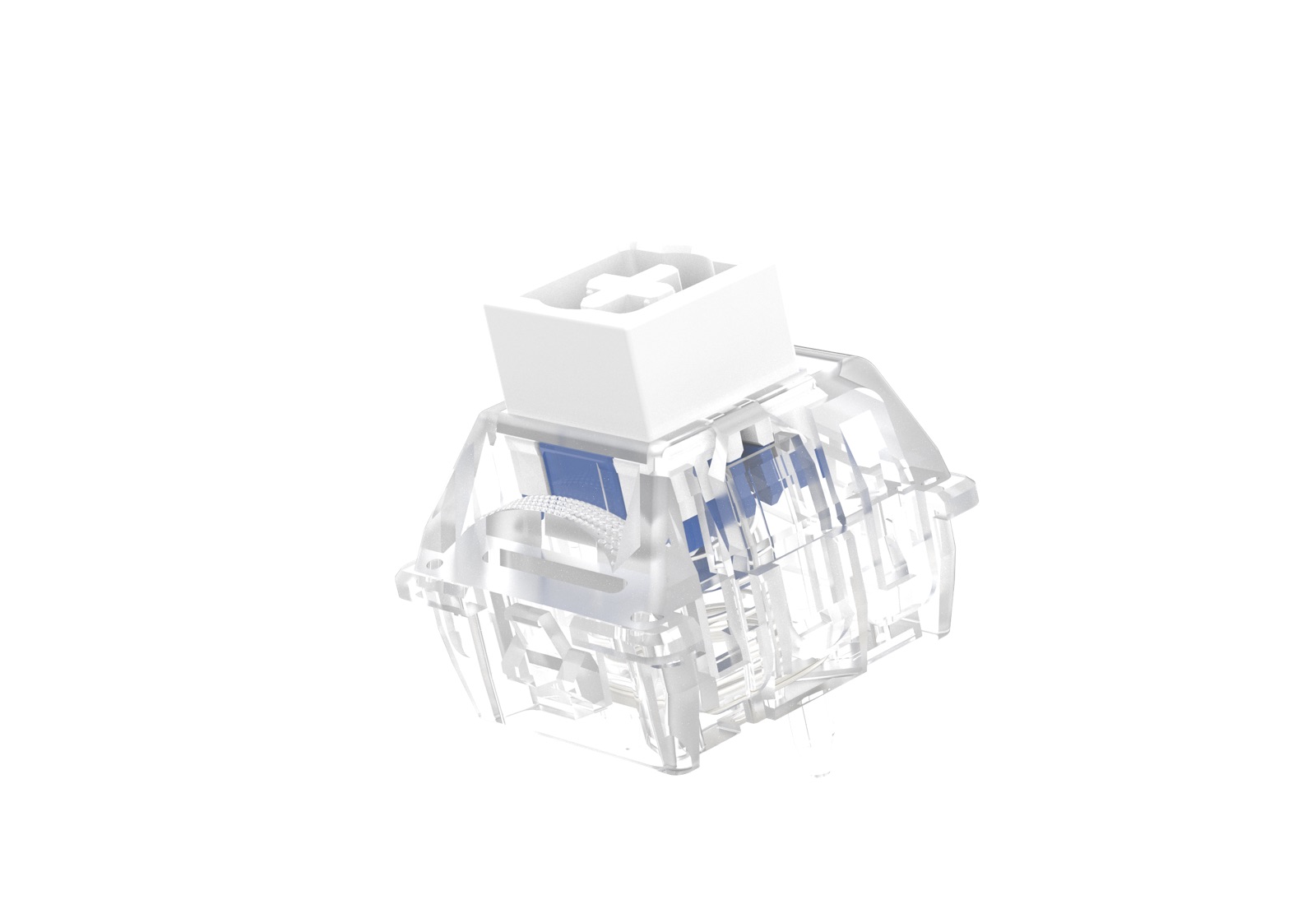

The TTC RGB King Sacred Heart HE is a linear magnetic switch from TTC's King of Magnetic (KOM) series, built for analog and rapid-trigger gaming keyboards. It pairs polycarbonate top and bottom housings with a POM stem carried on a full box-style design, which sellers credit for added stability and reduced wobble, and it ships factory pre-lubed.
Because it senses travel with magnets and a Hall-effect sensor rather than metal contacts, the actuation point can be freely adjusted, and its translucent housing is made to carry per-key RGB lighting.
Summary compiled by Keebpedia from multiple sources.
Where to Buy
Feel
· Based on 1 ratingReviews
A premium gaming switch running about $1.20 each. The dual-rail design and material combo definitely makes for a smooth stroke, and a hole in the bottom housing gives it a crisp, satisfying sound -- both genuinely great. It also has that unmistakable "magnetic switch" sound, which people who like that will like. But it's expensive. Just plain expensive. Whether you want a switch this pricey comes down to whether you like that sound and that smooth, tight feel enough to pay for it. It sounds better in a keyboard that resonates easily, so the clacky magnetic-switch sound comes through. Really think about whether $1.20 a switch is worth it to you.
Community
Specs
- Type
- Linear
- Silent
- No
- Magnetic (HE)
- Yes
- Profile
- Normal
- Actuation Force
- N/A
- Bottom-out Force
- N/A
- Initial Force
- 35 g
- Pre-travel
- N/A
- Total Travel
- 3.4 mm
- Top Housing
- PC
- Bottom Housing
- PC
- Stem
- POM
- Factory Lubed
- Yes
- Box Structure
- N/A
- Adjustable Actuation
- Yes
- Initial Flux @1.2mm
- 100 Gs
- Initial Flux @1.6mm
- 90 Gs
- Final Flux @1.2mm
- 640 Gs
- Final Flux @1.6mm
- 480 Gs
- Diffuser
- Yes
- Brand
- TTC
- Manufacturer
- TTC
