Swagkeys X SWK Peony HE
Sound
Community pick — no login needed, one vote per browser.
Overview

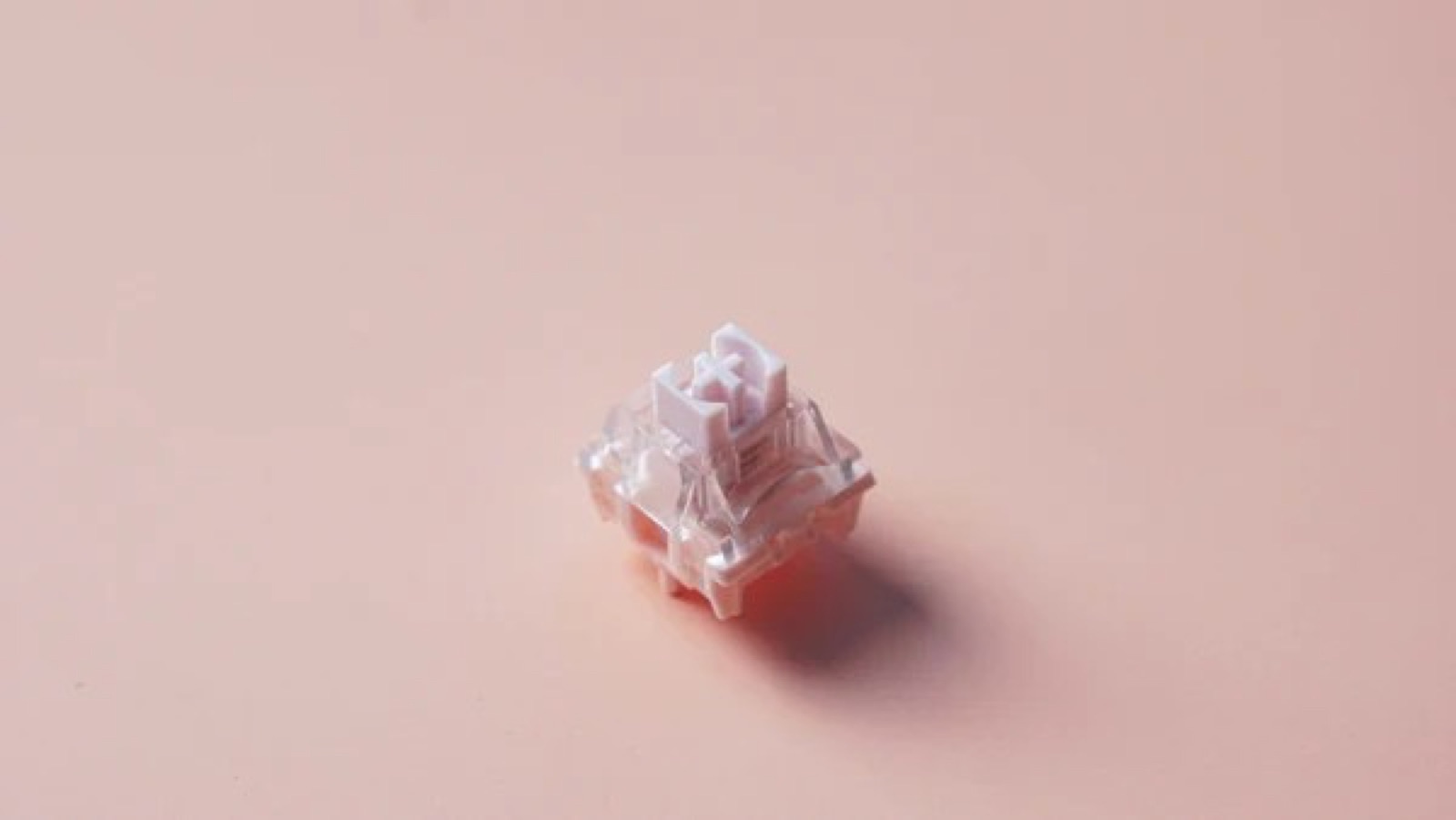

The Swagkeys x SWK Peony HE is a Hall-effect magnetic switch, described as the first magnetic switch made by SWK. It is a linear switch built with a box stem to reduce wobble, and combines PC, POK, and POM materials. It ships factory lubed.
As a Hall-effect design, it senses travel magnetically rather than through a metal contact leaf, so its actuation point is adjustable on compatible keyboards. Sources describe a smooth linear feel with a substantial typing character.
Summary compiled by Keebpedia from multiple sources.
Where to Buy
Reviews
Quiet despite no silent elements and a not-especially-short stem. The 39g bottom-out is on the light side, so it tends to slam down once you push. Down to preference, but personally I’d have wanted at least ~45g.
Community
Specs
- Type
- Linear
- Silent
- No
- Magnetic (HE)
- Yes
- Profile
- N/A
- Actuation Force
- N/A
- Bottom-out Force
- 39 g
- Initial Force
- N/A
- Pre-travel
- N/A
- Total Travel
- 3.4 mm
- Top Housing
- PC
- Bottom Housing
- POK
- Stem
- POM
- Spring Length
- 14.0 mm
- Spring Stage
- 1
- Factory Lubed
- Yes
- Box Structure
- No
- Adjustable Actuation
- Yes
- Initial Flux @1.2mm
- N/A
- Initial Flux @1.6mm
- N/A
- Final Flux @1.2mm
- N/A
- Final Flux @1.6mm
- N/A
- Brand
- Swagkeys
- Manufacturer
- SWK
