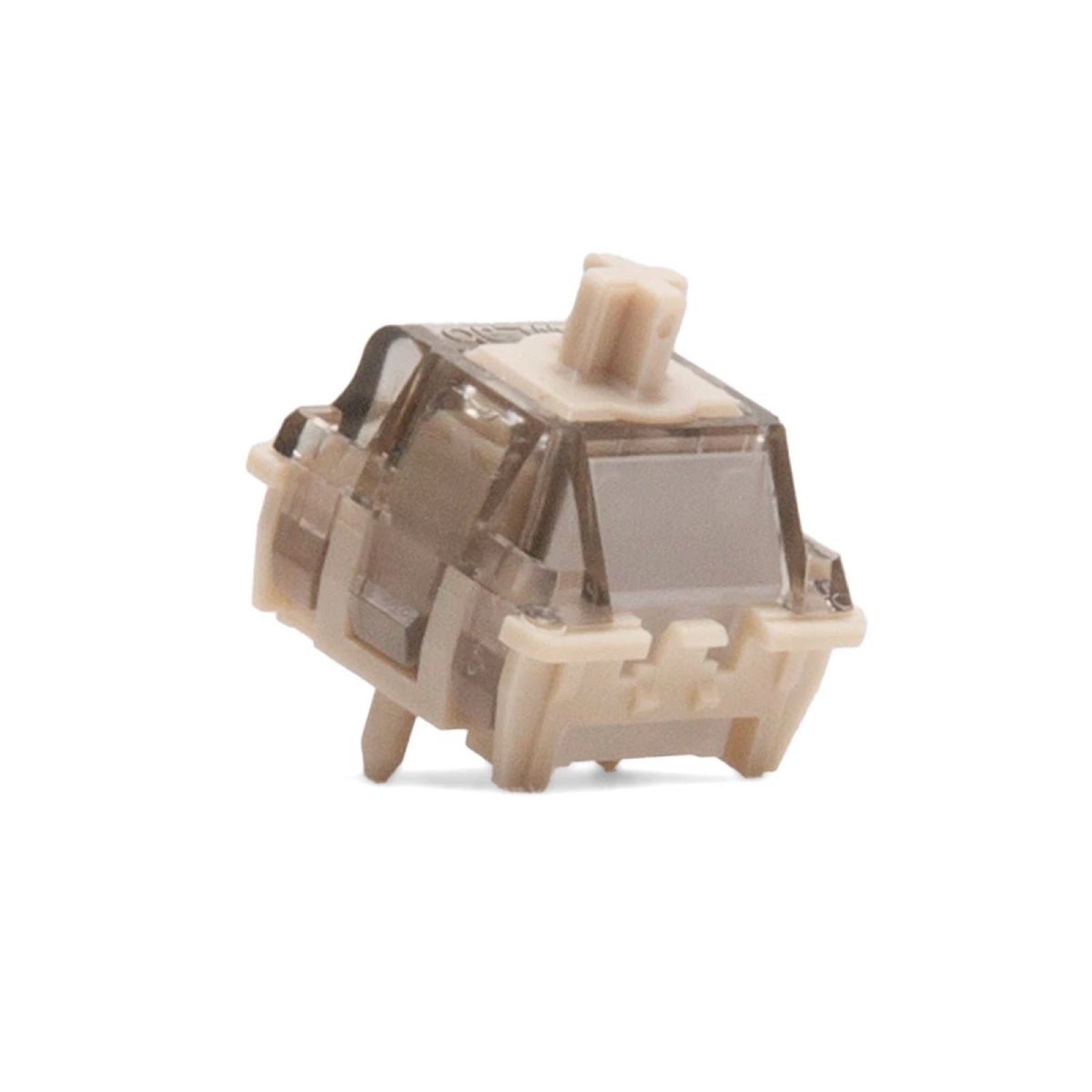

Owlab Ti HE
Sound
Community pick — no login needed, one vote per browser.
Overview
The Owlab Ti HE is a Hall effect magnetic linear switch, described as Owlab's first magnetic switch. Instead of metal contacts, it registers keypresses through a magnet and sensor, so it works only with Hall effect keyboards that support analog input and adjustable actuation.
It pairs a polycarbonate top housing with a closed nylon bottom and a POM stem, and ships factory lubed. Retailers and reviewers describe a smooth linear travel with little stem wobble and a clean, consistent bottom-out.
Product summary compiled by Keebpedia from verified product information.
Where to Buy
Feel
· Based on 1 ratingReviews
As of April 2025, the best of the four magnetic switches I'd tried! What stood out was the low price and a clacky sound that resembles a normal mechanical. No wobble, and the stem was the longest of the ones I tried, so it really produced sound. I haven't explored magnetic-switch boards yet, so I can't speak to pairing. It's trouble-free to try, which is great — and at $0.45 each it's pricey by mechanical standards but cheap for a magnetic switch (at least cheaper than Jade Pro), which makes it appealing.

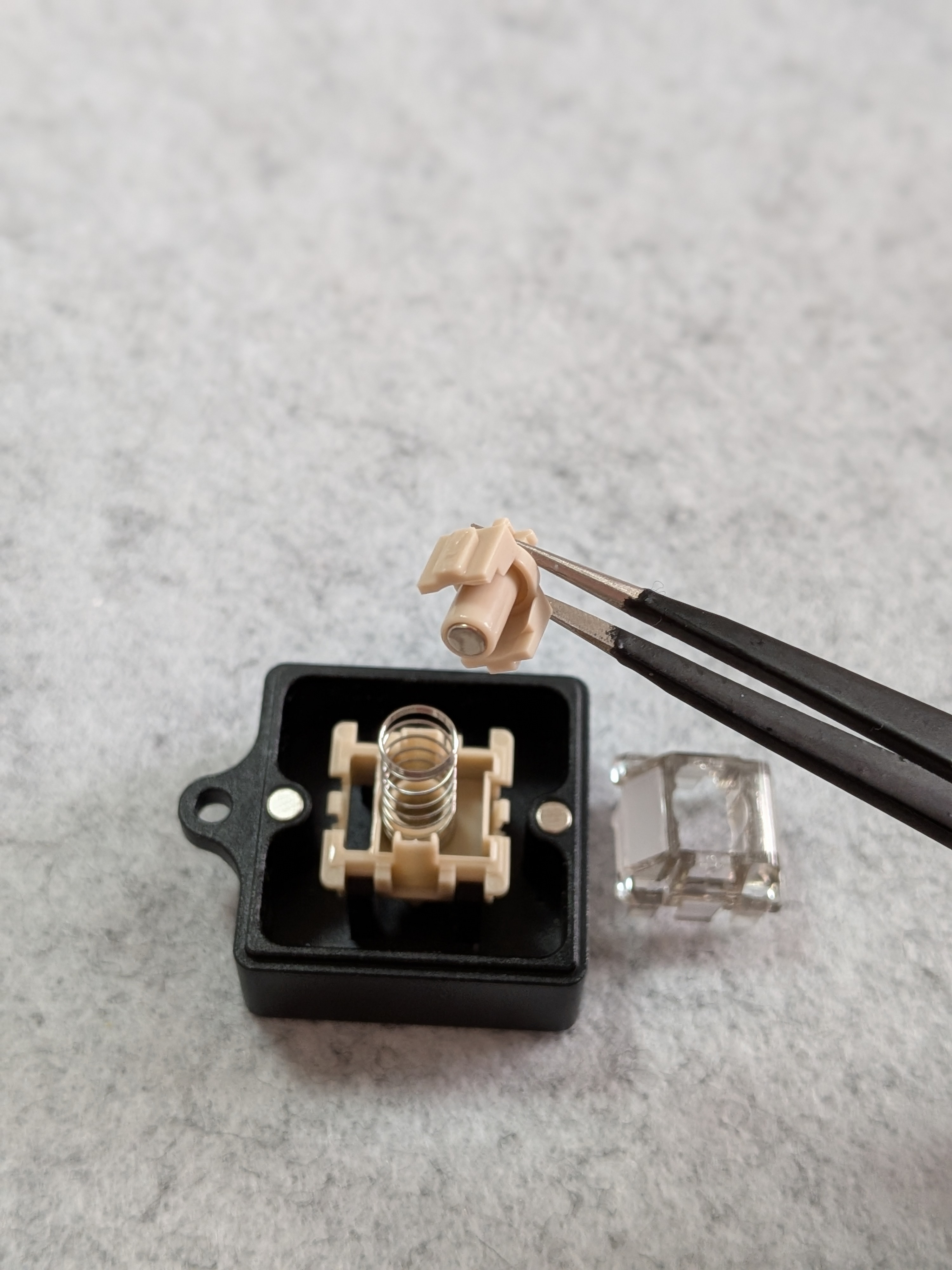

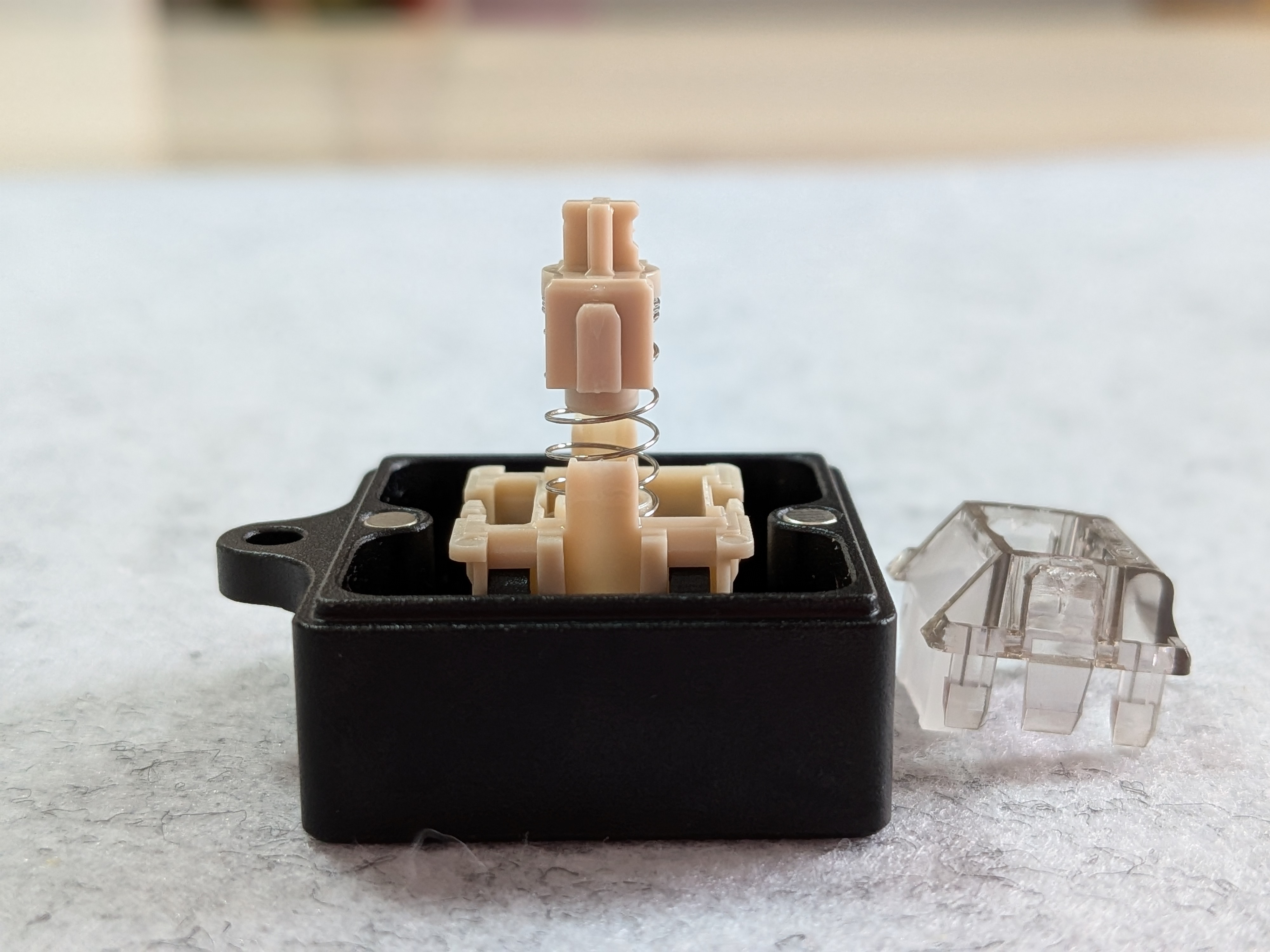

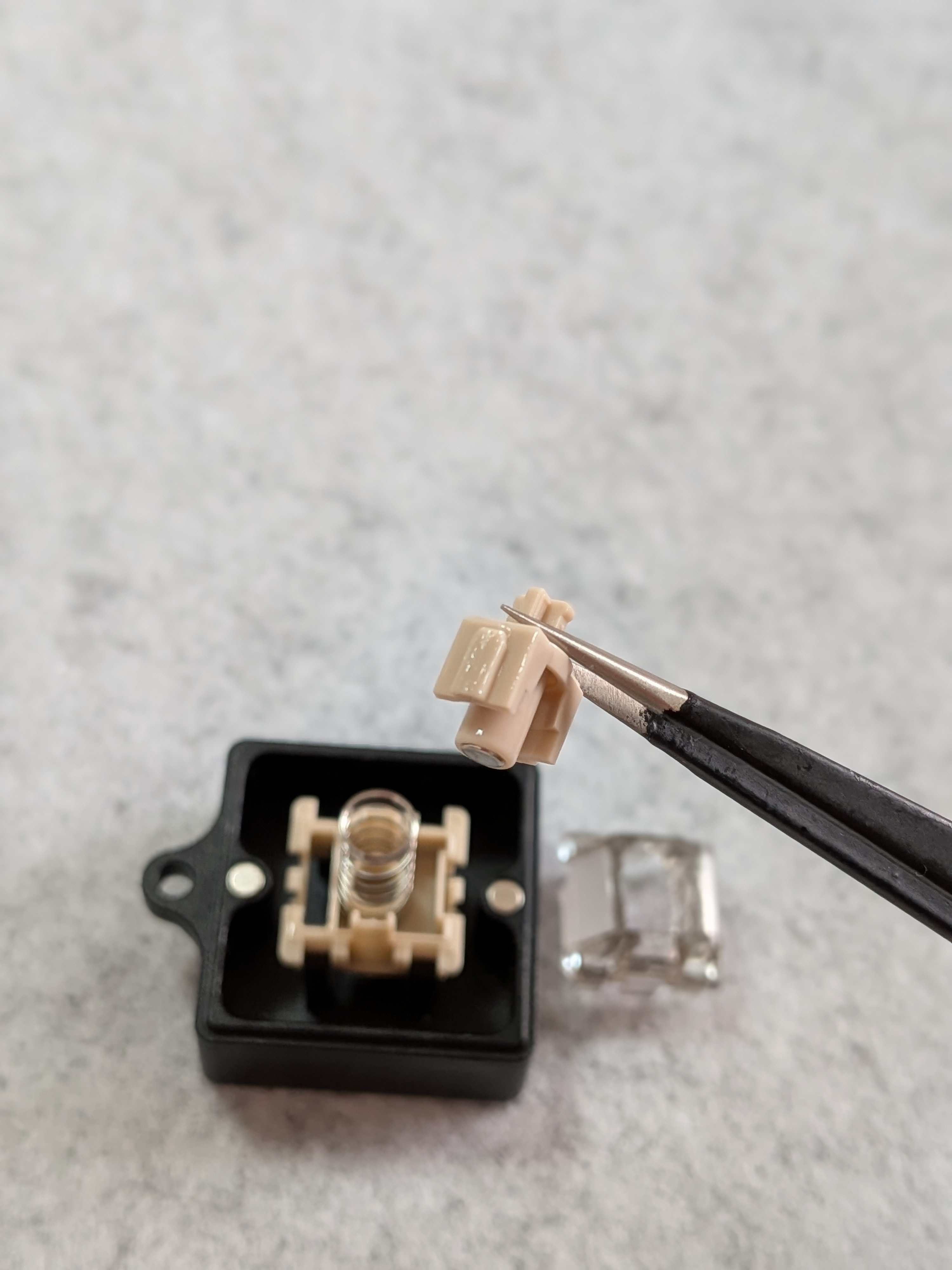

Photos
Submitted by the community — separate from the reference image.
Community
Ask a questionNo questions in this view yet. New submissions appear after moderator approval.
Specs
- Type
- Linear
- Silent
- No
- Magnetic (HE)
- Yes
- Profile
- Normal
- Actuation Force
- N/A
- Bottom-out Force
- 40 / 50 g
- Initial Force
- N/A
- Pre-travel
- N/A
- Total Travel
- 3.4 mm
- Top Housing
- PC
- Bottom Housing
- Nylon
- Stem
- POM
- Factory Lubed
- Yes
- Box Structure
- No
- Adjustable Actuation
- Yes
- Initial Flux @1.6mm
- N/A
- Final Flux @1.6mm
- N/A
- Brand
- Owlab
- Manufacturer
- Owlab
