HMX Xinhai
Sound
Community pick — no login needed, one vote per browser.
Overview

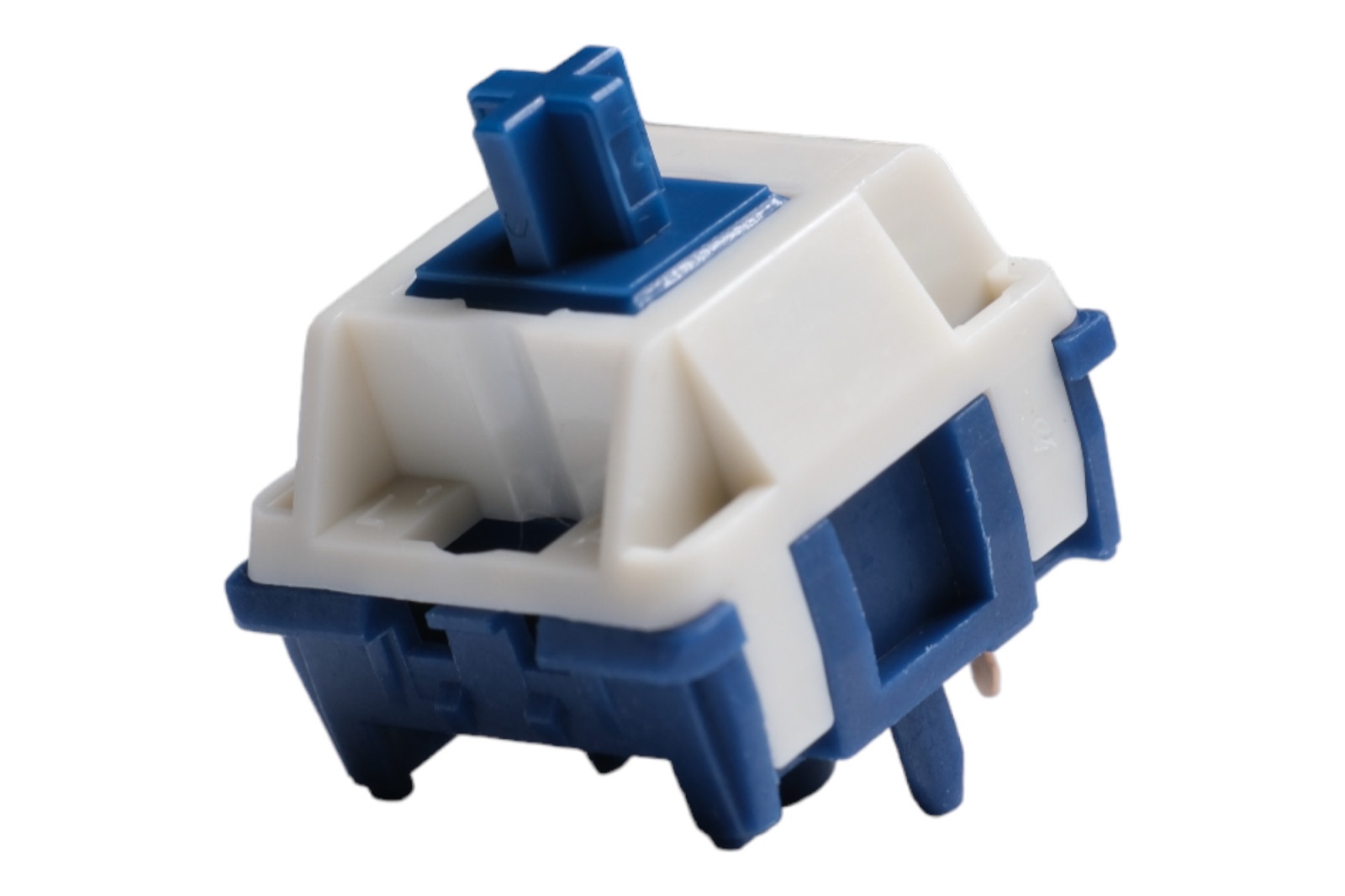

The HMX Xinhai is a linear switch designed by HC Studio and manufactured by HMX. It pairs a PA12 top housing with a nylon bottom housing and a POM stem, a combination chosen to soften the top-end acoustics while the stem gives the bottom-out a crisper, higher-pitched voice.
It ships factory lubed, and reviewers note the leaf and spring are lubricated as well, so it is generally regarded as usable out of the box without further modification.
Summary compiled by Keebpedia from multiple sources.
Where to Buy
Reviews
The sound is superb — creamy and loud, a satisfying pachi-pachi clack. It drops from a perfect score only because the newer Dragon Ghost, with its vented bottom housing, sounds clearer; Xinhai doesn’t have that. Still one of my favorites.
Community
Specs
- Type
- Linear
- Silent
- No
- Magnetic (HE)
- No
- Profile
- N/A
- Actuation Force
- 45 g
- Initial Force
- N/A
- Pre-travel
- 2.0 mm
- Total Travel
- 3.4 mm
- Top Housing
- PA12
- Bottom Housing
- Modified Nylon
- Stem
- POM
- Spring Length
- 22.1 mm
- Spring Stage
- 1
- Factory Lubed
- Yes
- Pins
- 5
- Box Structure
- No
- Brand
- HMX
- Manufacturer
- HMX
