Geon Raw HE
Sound
Community pick — no login needed, one vote per browser.
Overview

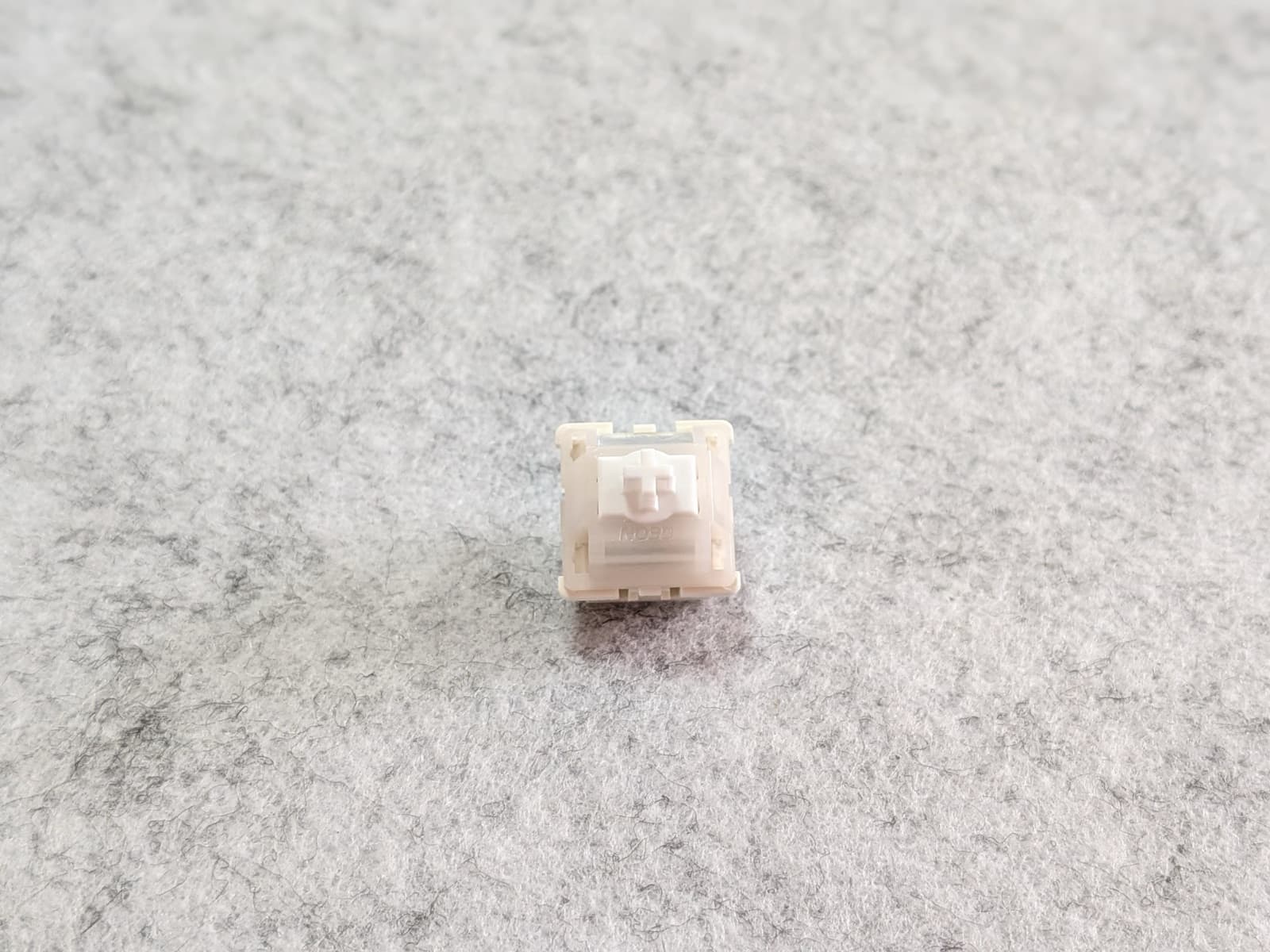

The Geon Raw HE is a magnetic, Hall effect linear switch designed by GEONWORKS. Instead of a metal contact leaf, it reads the stem's magnet with a Hall sensor, allowing analog, adjustable actuation on compatible keyboards; it ships factory lubed.
The housing pairs a polycarbonate top with a nylon bottom around a POM stem, and Geon's low-cavity mold is credited for its precision. A through-hole bottom housing with a bottoming pole shortens the travel, and its MX-style form fits standard keycaps.
Summary compiled by Keebpedia from multiple sources.
Where to Buy
Feel
· Based on 1 ratingReviews
The best magnetic switch I've tried in the PC top / POM stem / Nylon bottom combo. Being able to choose from three weights is a plus, and the vent hole in the bottom housing gives a pleasantly crisp, airy typing sound. At $0.48 a switch it's a bargain, too.
I haven't explored HE boards enough yet, so I can't really speak to board pairing. I used the 60g — it was the best for me, though gamers will probably want something lighter.
Community
Specs
- Type
- Linear
- Silent
- N/A
- Magnetic (HE)
- Yes
- Profile
- Normal
- Actuation Force
- N/A
- Bottom-out Force
- 40 / 50 / 60 g
- Initial Force
- N/A
- Pre-travel
- N/A
- Total Travel
- 3.4 mm
- Top Housing
- PC
- Bottom Housing
- Nylon
- Stem
- POM
- Factory Lubed
- Yes
- Pins
- 2
- Box Structure
- No
- Adjustable Actuation
- Yes
- Initial Flux @1.2mm
- N/A
- Initial Flux @1.6mm
- N/A
- Final Flux @1.2mm
- N/A
- Final Flux @1.6mm
- N/A
- Reference price (each)
- N/A
- Brand
- Geon
- Manufacturer
- N/A
