Gateron Magnetic White
Sound
Community pick — no login needed, one vote per browser.
Overview
The Gateron Magnetic White (KS-20) is a linear, Hall-effect switch: permanent magnets and a magnetic sensor read the stem's position instead of a physical metal contact, so the actuation point can be adjusted. It works only with boards built to the magnetic (Wooting/lekker) standard, not standard mechanical PCBs.
It combines a polycarbonate top housing, a nylon bottom, and a POM stem, and ships pre-lubed. As a linear it has no tactile bump, giving an even keystroke throughout the press.
Summary compiled by Keebpedia from multiple sources.
Where to Buy
Feel
· Based on 1 ratingReviews
The bottom housing is open around the stem, so the sound doesn't resonate much -- it's designed to be quiet. Not a silent switch exactly, but quiet for a magnetic switch. That said, it can sound a little hollow because of it, which felt underwhelming to me personally. Haven't explored magnetic-switch keyboards enough to know what it pairs well with. It's cheaper than Jade Pro, but still around $0.60 a switch, so honestly I'd point you to Owlab instead -- unless quiet typing specifically is what you're after, in which case this one's worth it.

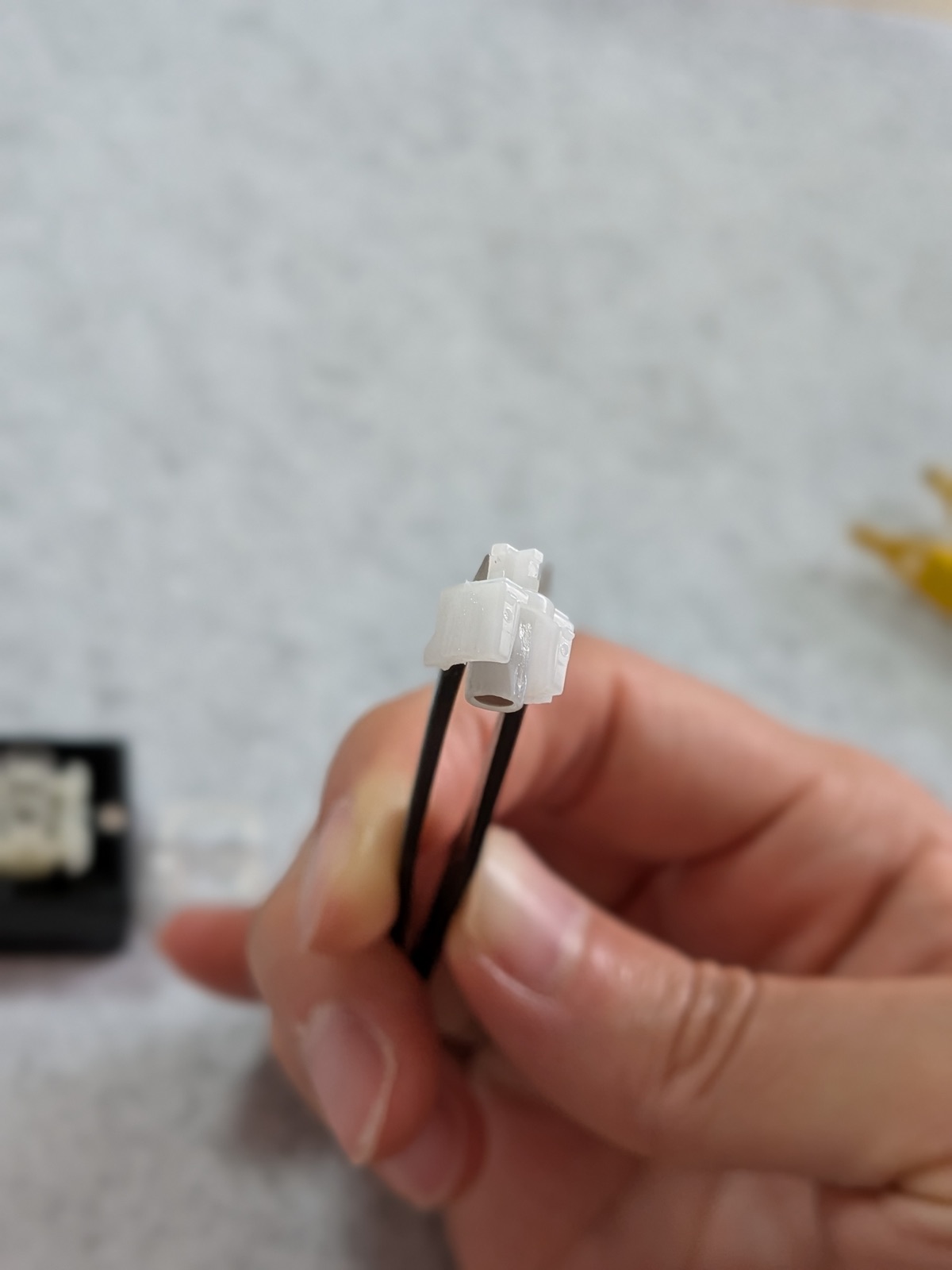

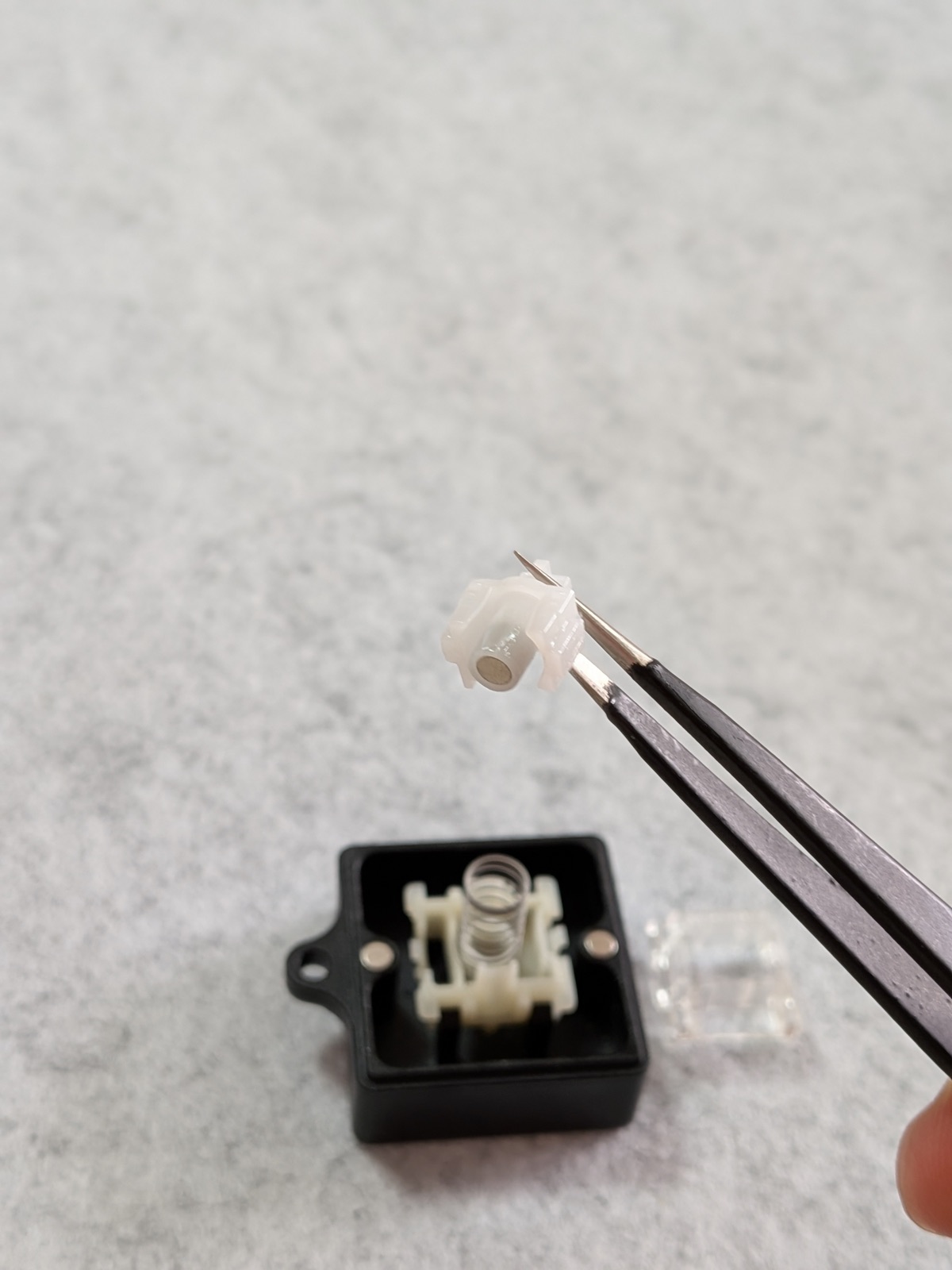

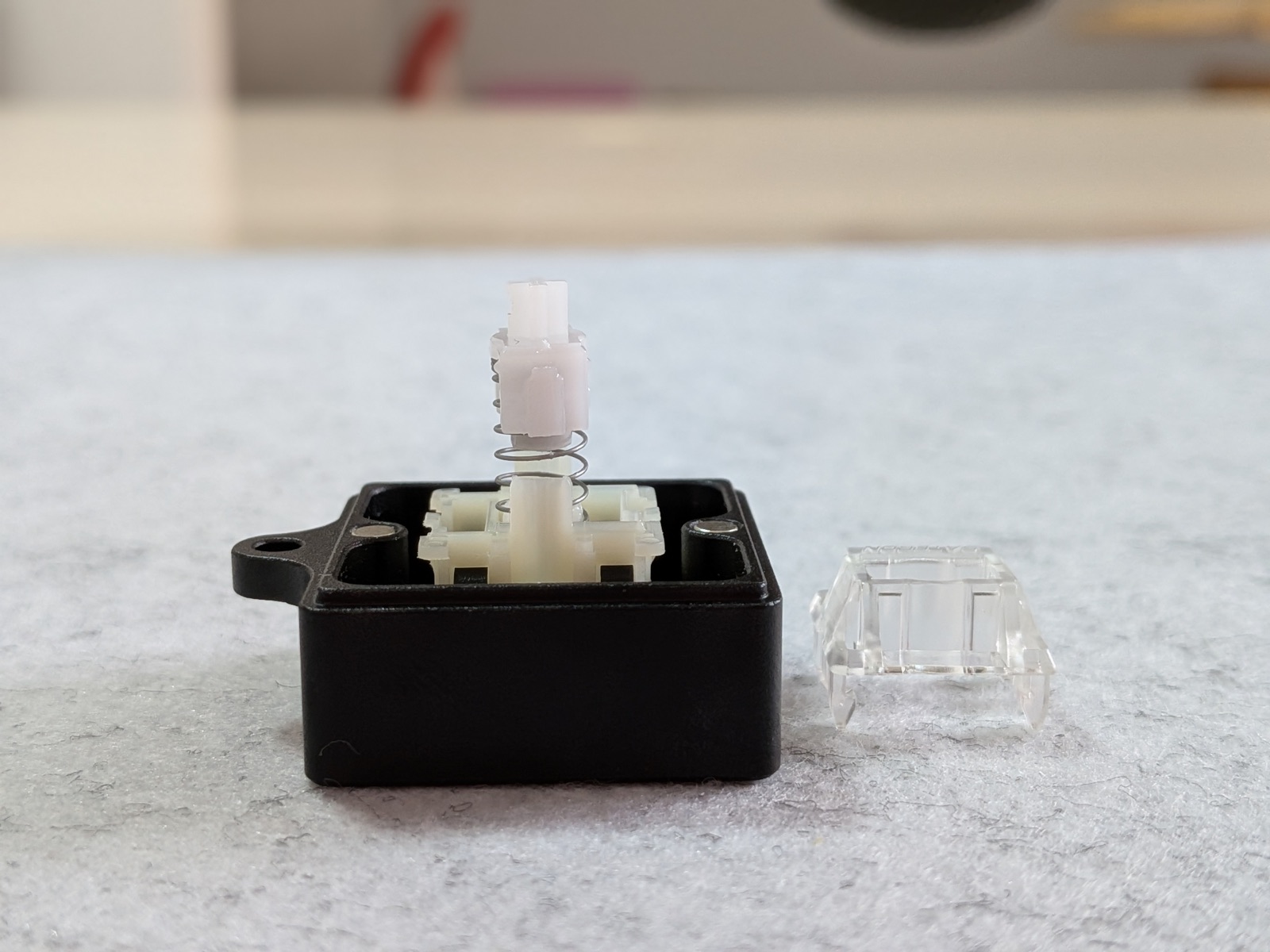

Photos
Submitted by the community — separate from the reference image.
Community
Specs
- Type
- Linear
- Silent
- No
- Magnetic (HE)
- Yes
- Profile
- Normal
- Actuation Force
- N/A
- Bottom-out Force
- 50 g
- Pre-travel
- N/A
- Total Travel
- 4.1 mm
- Top Housing
- PC
- Bottom Housing
- Nylon
- Stem
- POM
- Factory Lubed
- Yes
- Box Structure
- N/A
- Adjustable Actuation
- Yes
- Initial Flux @1.2mm
- N/A
- Initial Flux @1.6mm
- N/A
- Final Flux @1.2mm
- N/A
- Final Flux @1.6mm
- N/A
- Brand
- Gateron
- Manufacturer
- Gateron
