Gateron

Gateron Magnetic Spark

No ratings yet

Market price $1.70 · as of 2026-07-16

Linear

Type

45g

Bottom-out

3.2mm

Total Travel

StockUnavailable

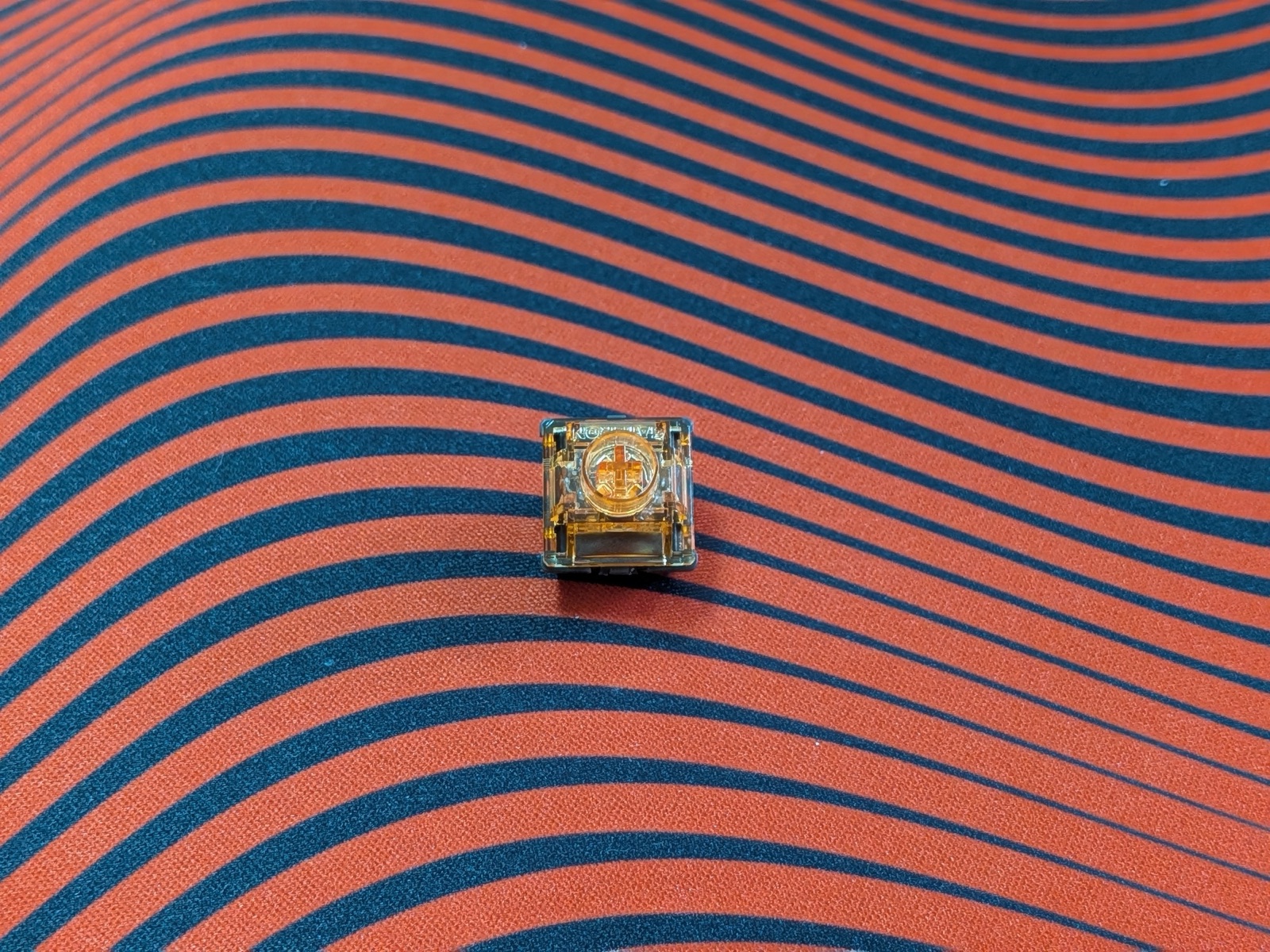

Photo: Keebpedia

Sound

How does it sound?0 votes

Community pick — no login needed, one vote per browser.

Overview

The Gateron Magnetic Spark is a linear Hall-effect switch made for magnetic keyboards, where magnets and sensors read the stem's position instead of physical contacts. Because actuation is measured by travel distance, the trigger point can be set freely, and the design avoids contact bounce and chatter.

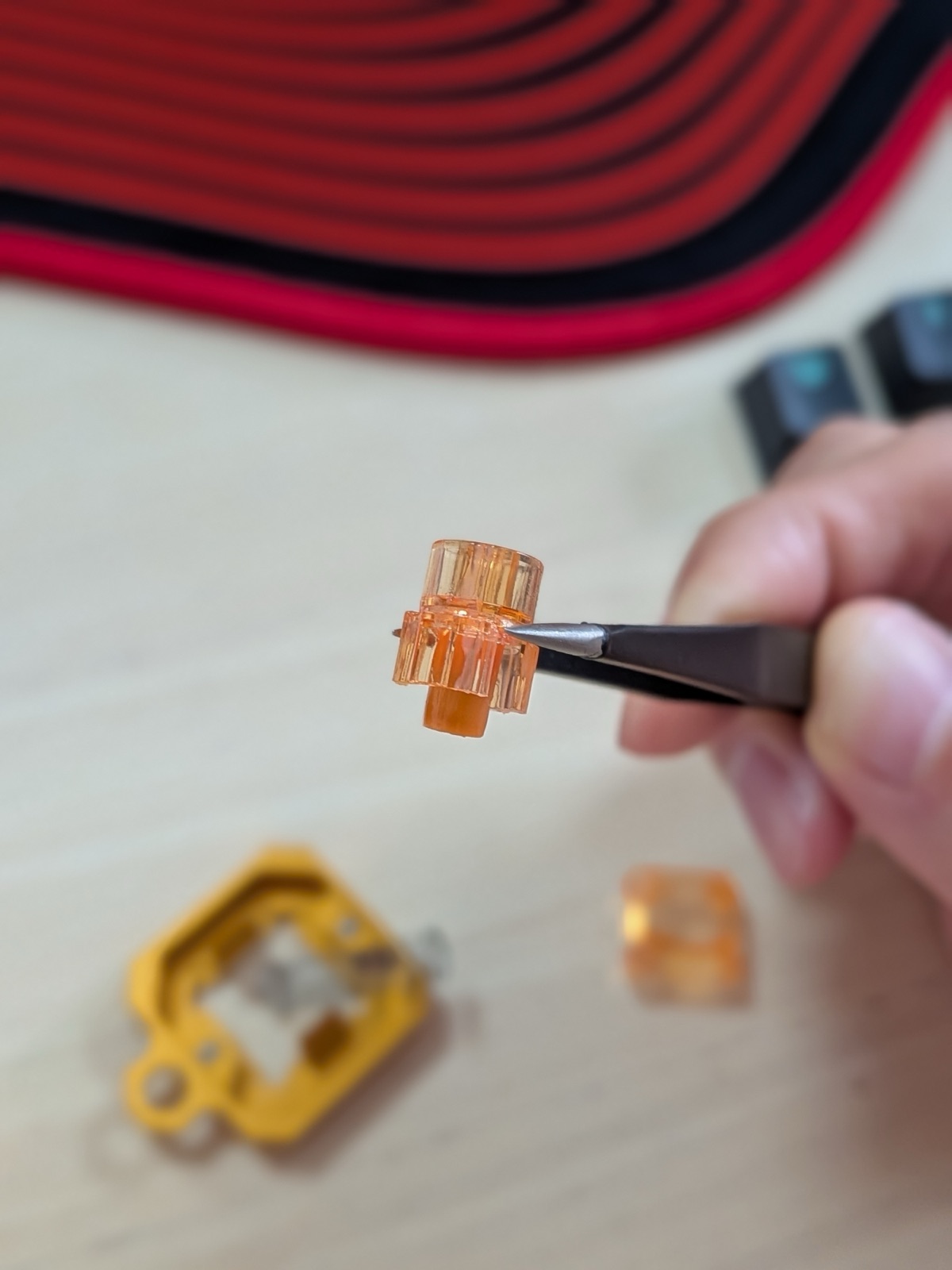

It uses a polycarbonate top housing, a PA66 nylon base, and a polycarbonate stem. The stem has a dual-drive modular design that separates the keycap mount from the magnet-bearing lower section. It sounds very deep.

Summary compiled by Keebpedia from multiple sources.

Where to Buy

No listings yet

Reviews

No reviews yet — be the first to review this switch.

Community

No questions yet — be the first to ask.

Specs

Type: Linear
Silent: No
Magnetic (HE): Yes
Profile: Normal
Actuation Force: 33 g
Bottom-out Force: 45 g
Initial Force: 33 g
Pre-travel: N/A
Total Travel: 3.2 mm
Top Housing: PC
Bottom Housing: PA66
Stem: PC
Stem Length: N/A
Spring Length: 22.0 mm
Spring Stage: N/A
Factory Lubed: Yes
Pins: N/A
Box Structure: N/A
Adjustable Actuation: Yes
Initial Flux @1.2mm: 122 Gs
Initial Flux @1.6mm: N/A
Final Flux @1.2mm: 550 Gs
Final Flux @1.6mm: N/A
Reference price (each): $1.70Market price · as of 2026-07-16
Brand: Gateron
Manufacturer: Gateron
