Gateron Magnetic Jade Pro
Sound
Community pick — no login needed, one vote per browser.
Overview

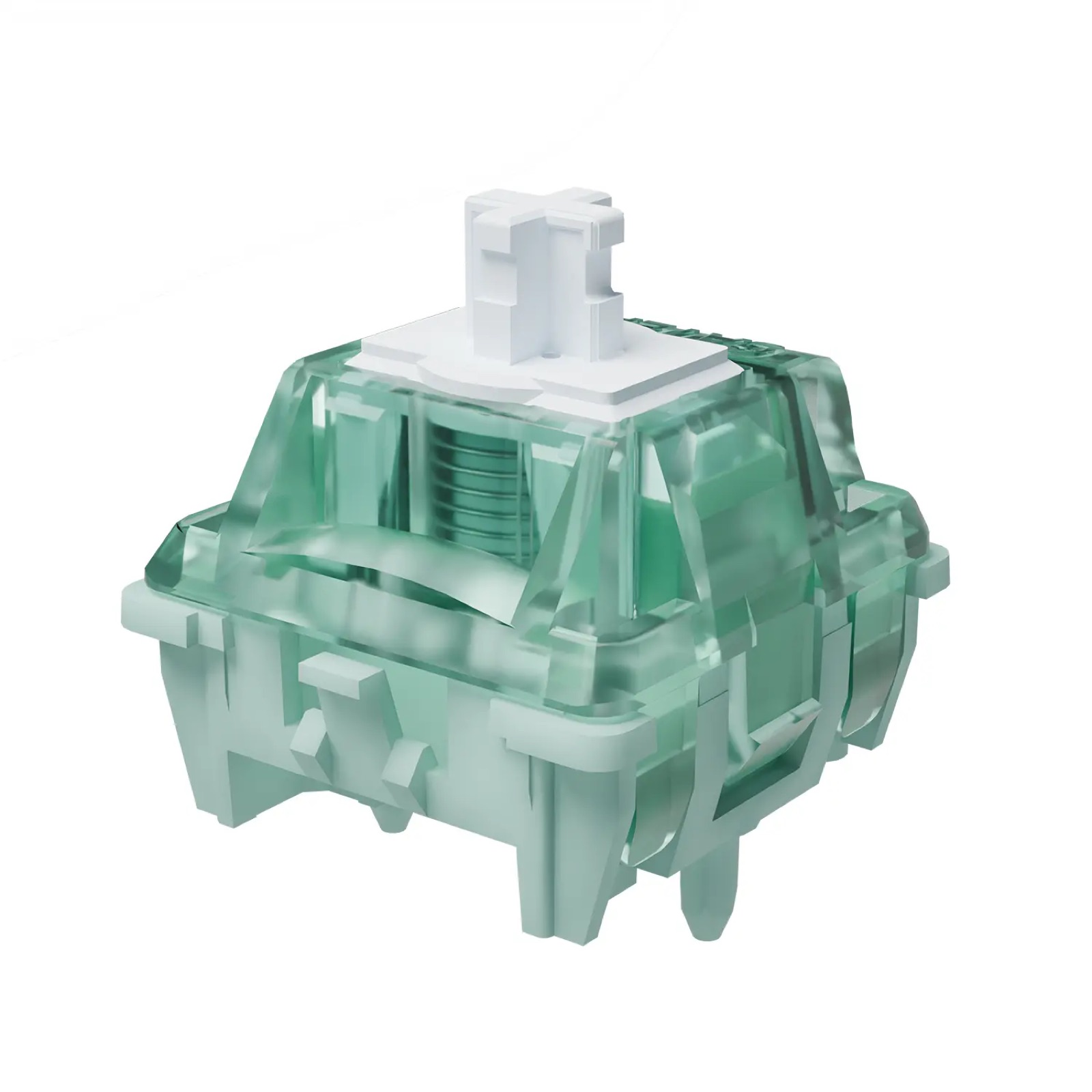

The Gateron Magnetic Jade Pro is a Hall-effect linear switch for magnetic-sensing keyboards. Instead of a metal contact leaf, a magnet in the POM stem is read by a sensor in the board, letting the actuation point be set anywhere along the travel on boards that support it; it works only in Hall-effect PCBs, not standard mechanical keyboards.
It pairs a polycarbonate top housing with a nylon base and ships factory-lubed, with a back-covered housing design meant to limit stem wobble and shape its sound.
Summary compiled by Keebpedia from multiple sources.
Where to Buy
Reviews
Pricey at around $0.80 per switch, but the quality holds up. The crisp, clacky sound and the cushioned feel of the 20mm spring are both excellent, and it has a distinctive tone — like mahjong tiles clacking together. Two caveats: the price, and it doesn't seat very tightly, so a switch can pop out with the keycap when you pull caps. One of the better magnetic switches I'd tried as of early 2025.
Community
Specs
- Type
- Linear
- Silent
- No
- Magnetic (HE)
- Yes
- Profile
- N/A
- Actuation Force
- N/A
- Bottom-out Force
- 50 g
- Pre-travel
- N/A
- Total Travel
- 3.5 mm
- Top Housing
- PC
- Bottom Housing
- PA66
- Stem
- POM
- Spring Length
- 20.0 mm
- Spring Stage
- 1
- Factory Lubed
- Yes
- Box Structure
- No
- Adjustable Actuation
- Yes
- Initial Flux @1.2mm
- 120 Gs
- Initial Flux @1.6mm
- N/A
- Final Flux @1.2mm
- 700 Gs
- Final Flux @1.6mm
- N/A
- Brand
- Gateron
- Manufacturer
- Gateron
