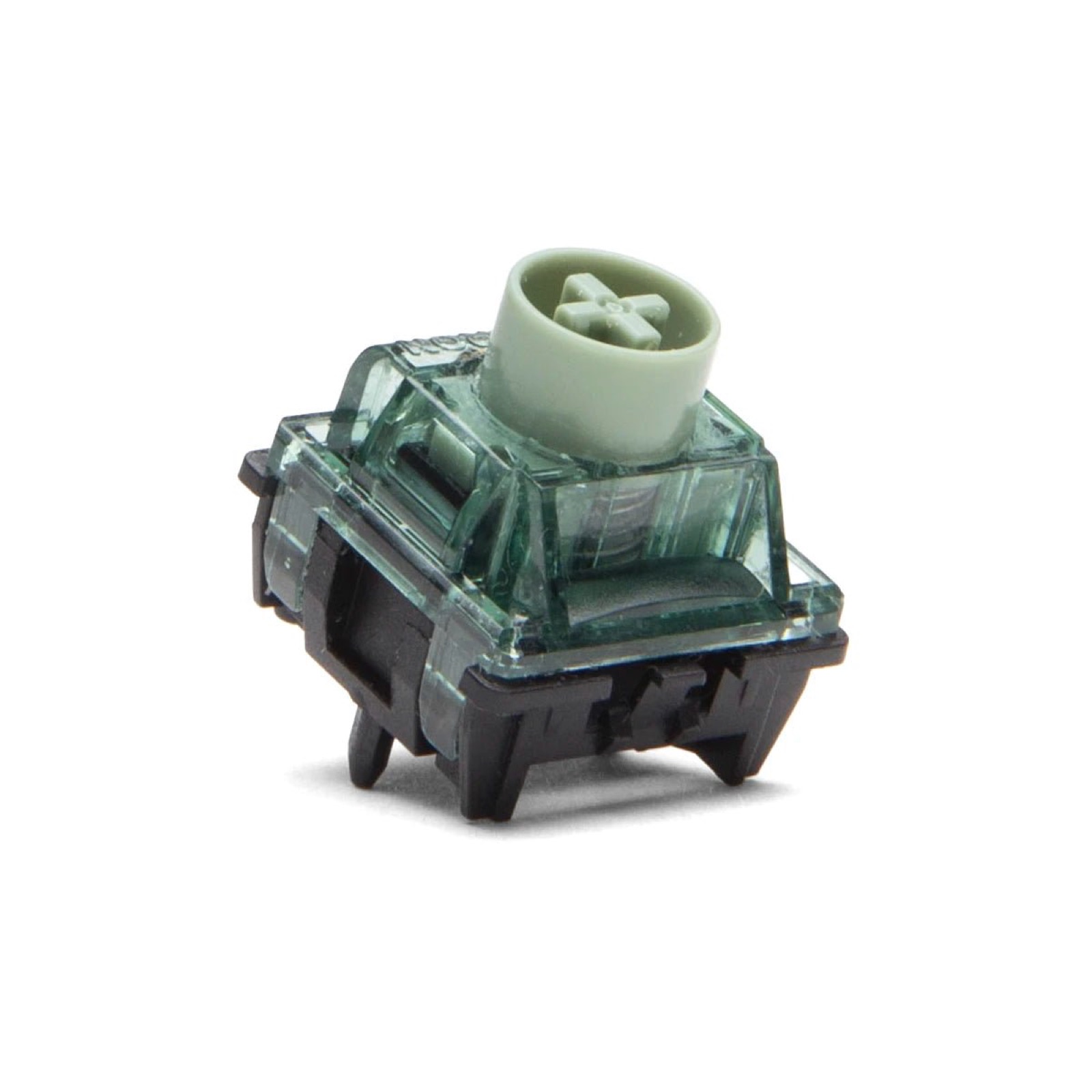

Gateron Magnetic Jade Emerald
Sound
Community pick — no login needed, one vote per browser.
Overview
The Gateron Magnetic Jade Emerald is a Hall-effect magnetic switch built with a tactile stroke, an unusual pairing in a magnetic category otherwise dominated by linears. Contactless sensing lets the actuation point be set in software, while a POM stem sits inside a polycarbonate top and PA66 bottom housing. The stem carries surrounding walls meant to steady vertical travel and reduce wobble.
It ships factory lubed, pairing an early tactile bump with a firm, deep bottom-out that tends to dominate the sound against a brighter bump.
Summary compiled by Keebpedia from multiple sources.
Where to Buy
Feel
· Based on 1 ratingReviews
My first HE tactile switch. Until now HE switches were all linear and sounded nearly identical, so a tactile felt truly one-of-a-kind — I loved it. I'd have given it a 5, but at $0.85 each I had to dock one; around $0.50 it'd be a 5 for sure. I reviewed it alongside the Spark — the Spark's sound is purer, and the Emerald does mix in a slightly 'impure' note. Even so, the sheer fun of a tactile made that a non-issue. Works with any board. Probably not one for gaming, but for anything else it's perfectly usable.

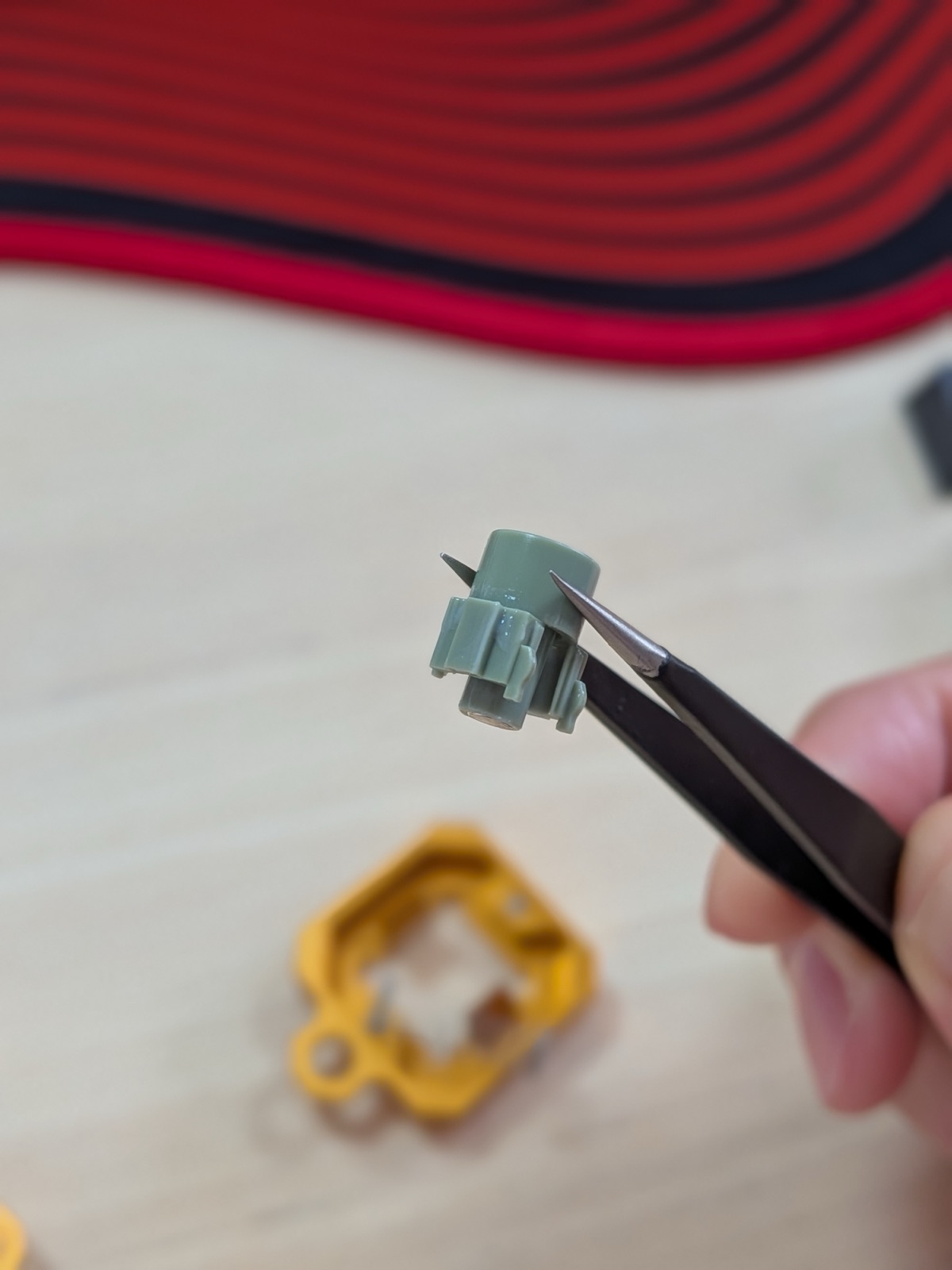

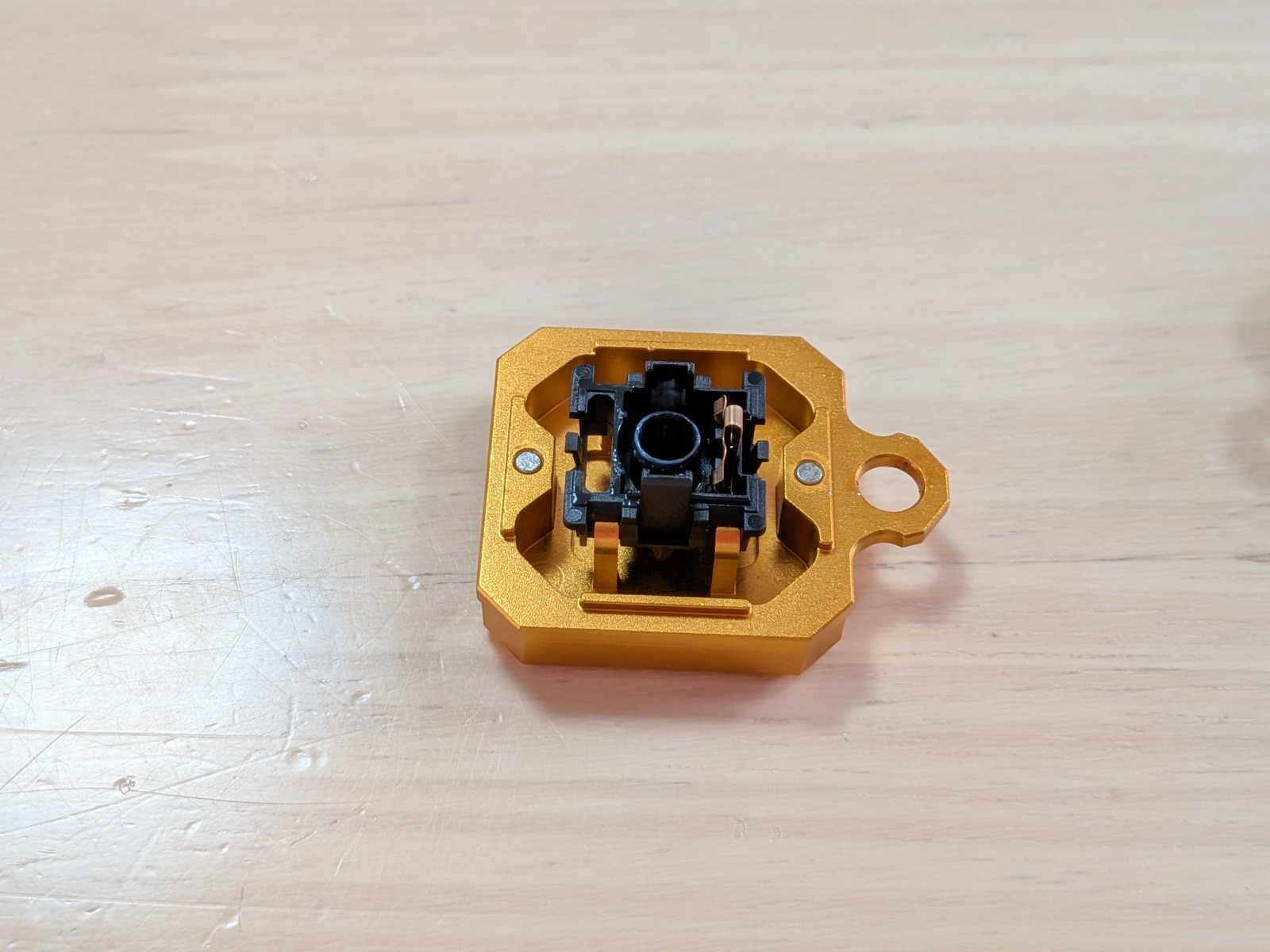

Photos
Submitted by the community — separate from the reference image.
Community
Specs
- Type
- Tactile
- Silent
- No
- Magnetic (HE)
- Yes
- Profile
- Normal
- Actuation Force
- N/A
- Bottom-out Force
- N/A
- Initial Force
- 55 g
- Pre-travel
- N/A
- Total Travel
- 3.5 mm
- Top Housing
- PC
- Bottom Housing
- PA66
- Stem
- POM
- Factory Lubed
- Yes
- Box Structure
- No
- Adjustable Actuation
- Yes
- Initial Flux @1.2mm
- N/A
- Initial Flux @1.6mm
- N/A
- Final Flux @1.2mm
- N/A
- Final Flux @1.6mm
- N/A
- Brand
- Gateron
- Manufacturer
- Gateron
