Brand: Gateron

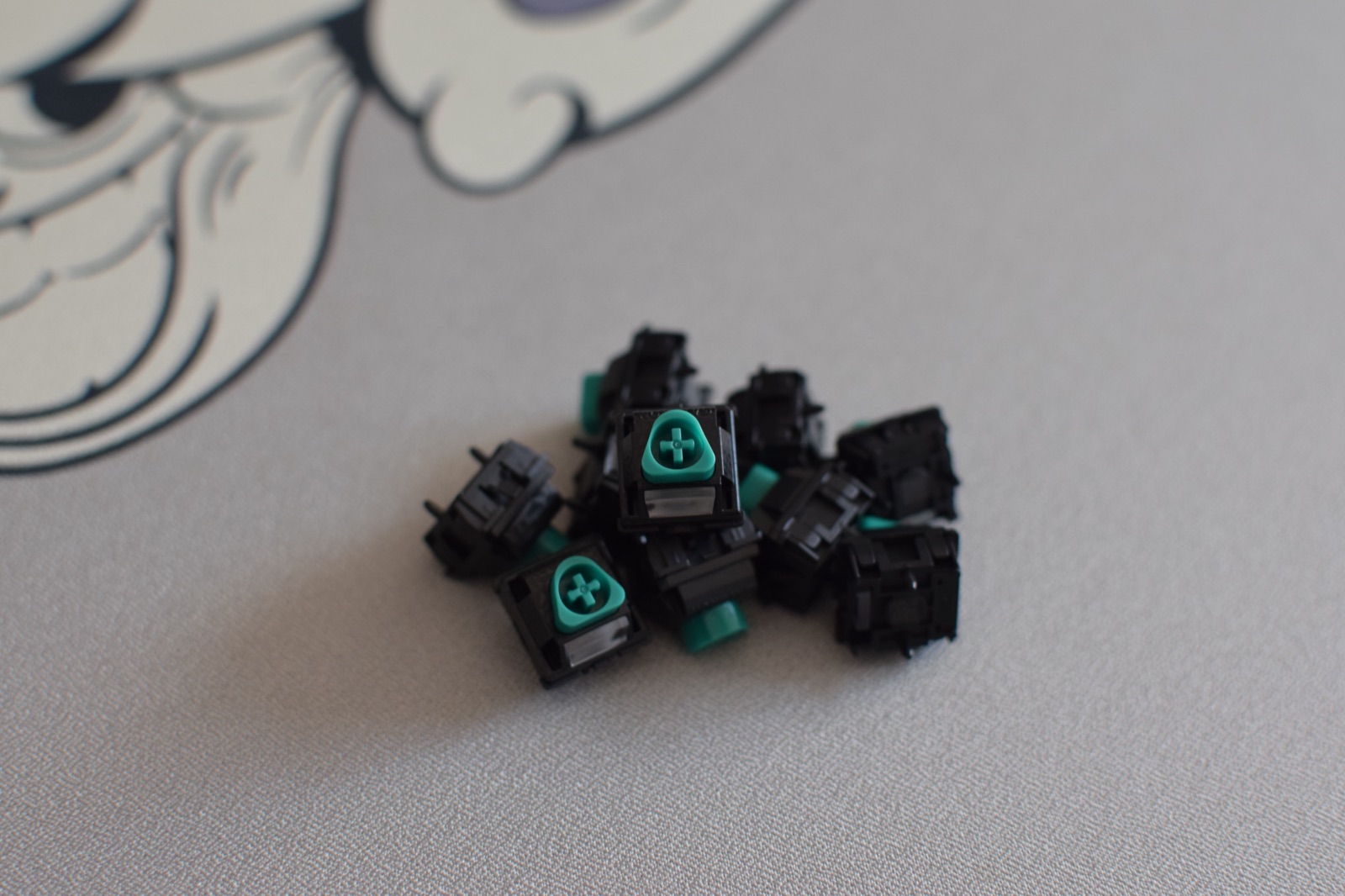

Gateron Magnetic Jade Delta
Compare specs and typing sounds side by side.
tenpapa
Sound
Community pick — no login needed, one vote per browser.
Overview
The Gateron Magnetic Jade Delta is a Hall-effect magnetic linear switch in Gateron's Magnetic Jade family, built for analog gaming boards with adjustable actuation. It uses a modified POM top and bottom housing with a POM stem and is factory lubed.
Its defining feature is a triangular stem replacing the usual rectangular one, framed as a stability measure but described by reviewers as largely aesthetic. Its sound is noted as deeper and richer than typical Hall-effect linears.
Product summary compiled by Keebpedia from verified product information.
Where to Buy
- KBDfansVendor experiences →$1.26View
- Aliexpress$1.31View
- Divinikey$1.40View
- Aliexpress$1.08Unavailable
Reviews
Plus: low stem wobble, a proper magnetic sound. Minus: with keycaps on there’s a slight dissonant note, and it’s pricey. The triangular (“delta”) stem is a neat idea but not fully dialed in yet — you can hear a little dissonance from wobble. Modern HE switches are so good that this stands out, though it’s not actually loud or bad. With another iteration it could be excellent.

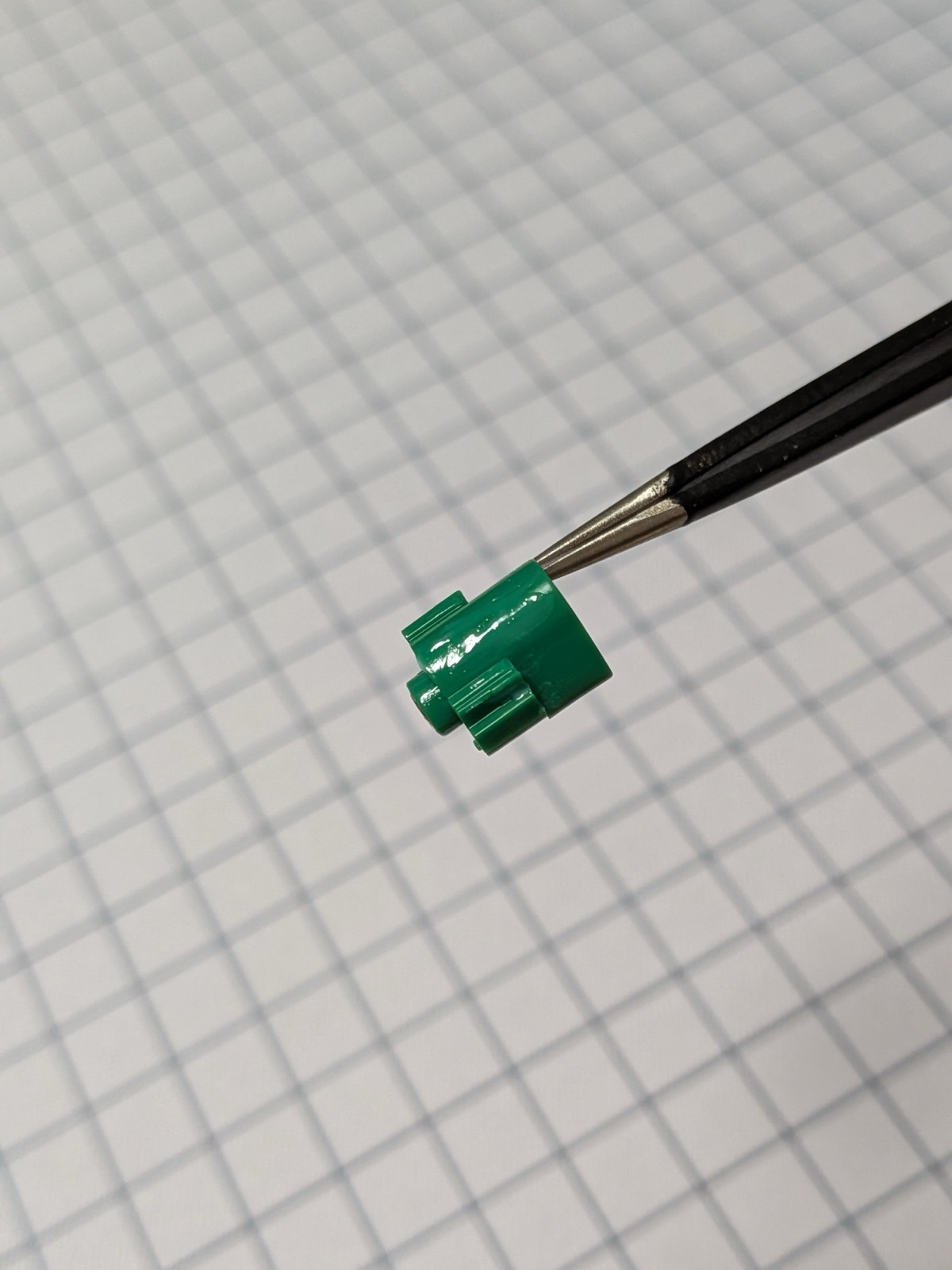

Photos
Submitted by the community — separate from the reference image.
Community
Ask a questionNo questions in this view yet. New submissions appear after moderator approval.
Specs
- Type
- Linear
- Silent
- No
- Magnetic (HE)
- Yes
- Profile
- N/A
- Actuation Force
- N/A
- Bottom-out Force
- N/A
- Pre-travel
- N/A
- Total Travel
- 3.5 mm
- Top Housing
- Modified POM
- Bottom Housing
- Modified POM
- Stem
- POM
- Spring Length
- 20.0 mm
- Spring Stage
- 1
- Factory Lubed
- Yes
- Box Structure
- No
- Adjustable Actuation
- Yes
- Initial Flux @1.2mm
- N/A
- Initial Flux @1.6mm
- N/A
- Final Flux @1.2mm
- N/A
- Final Flux @1.6mm
- N/A
- Brand
- Gateron
- Manufacturer
- Gateron
